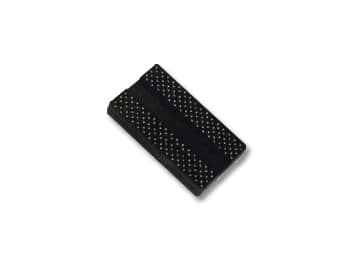

Grypper

  • Package-size PCB footprint: Since the PCB footprint of Grypper is identical to or smaller than the IC package, only one PCB design is required, enabling a seamless transition from test and validation through production and reducing overall cost of test
  • No lid required: The package snaps directly without a lid, enabling easy probing, scoping and troubleshooting the topside of the device
  • Excellent signal performance: A short signal path achieves low inductance and low insertion loss, providing a nearly invisible electrical connection
